Various messages are displayed on the TBS 5200 screen to inform users about the system status or required actions. This article provides an overview of the most common display messages, supported by clear images. This way, you know exactly what each message means.

Display messages
- After presenting an authorized card, Open Drum

- Close drum after depositing waste, Close Drum

- After presenting an unauthorized card, Invalid Card

Other N messages:
N04 - Card not in whitelist
N06 - Universal access card presented
N07 - Invalid card type
N08 - Time slot active

- After presenting an authorized card, Close Drum (drum is open)

- After presenting an authorized prepay card with credit, first Prepay Credit, then Open Drum

- After presenting an authorized prepay card without credit, Prepay Credit is 0, drum does not open

- After presenting manager card, info about system including UnitID

- Error message for defective drum sensor or other messages where the drum does not open,
Container Error

E - Messages:
E01 Internal memory full
E06 Card reader error
E22 Invalid system time
E30 Drum open not detected
E99 Battery voltage too low, lock cannot
be controlled

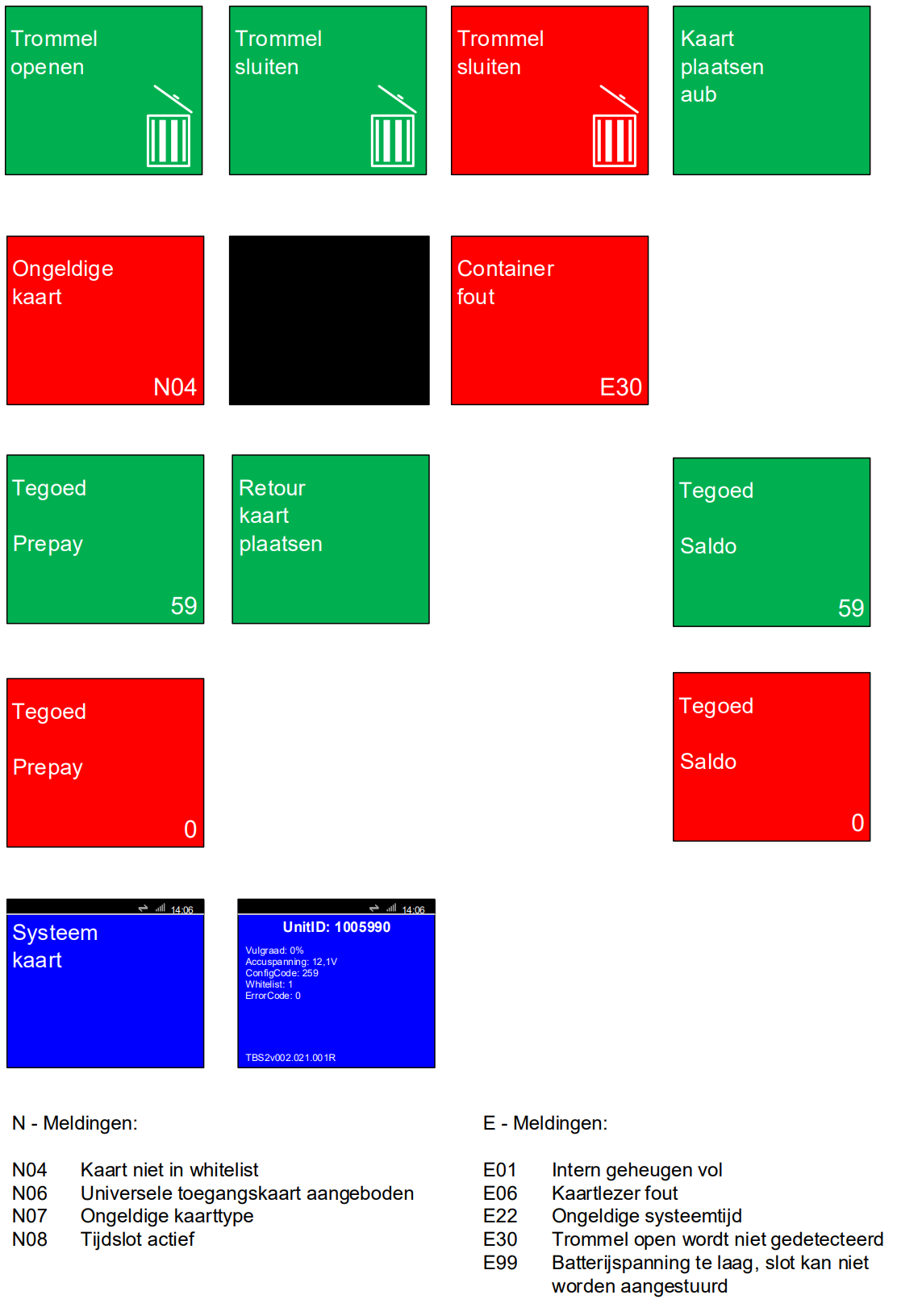

All messages:
